Mixer Series

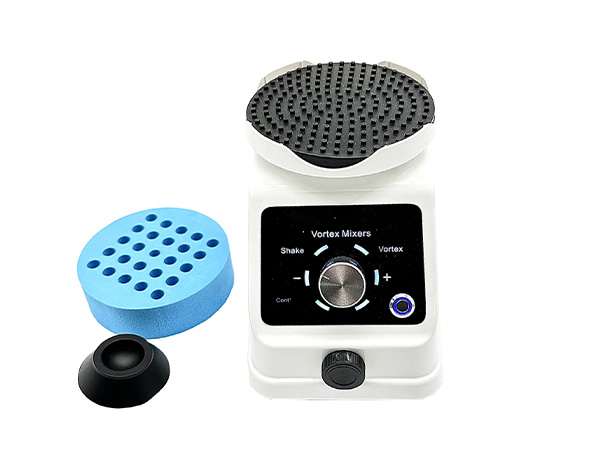

Vortex mixer Vortex-11

Vortex mixer Vortex-11

Mixer Series

  • Product Number:Vortex-11

Application Fields

The Vortex-11 Vortex Mixer is suitable for life sciences and physicochemical analysis, used for oscillating, mixing and stirring samples including tissues, cells, bacterial solutions, and chemical reagents.

Multiple adapters compatible with 0.2-2ml microtubes.

Vibration & Vortex mixing modes: Speed-adjustable control from low-speed vibration to high-speed vortex mixing. Select appropriate mixing mode as needed;

Multi-function: Dual platform with bowl-type vibration and flat vibration, suitable for manual/automatic mixing of different test tubes and containers;

Stable operation: Heavy-duty design provides stable platform for various mixing applications.

 Product Drawing


Product parameters

Accessory Diagram

Model

Description

Vortex-11 (Figure 5)

HS-A

Standard head for tubes and small containers with diameter<30mm



Name

Vortex Mixer

Model

VORTEX-11

Operation Mode

Continuous/Point Operation/Infrared Photoelectric Switch

Control & Display

Knob + Scale + Infrared Photoelectric Switch

Motor Type

3mm

Speed Range

300-3000rpm

Amplitude

Circular

Timer

0s-99h59m

Power

60W

Voltage

220VAC

Dimensions

W120mm×D160mm×H175mm

Max Sample Capacity

/

Optional Modules

All

Net Weight

2.1kg
