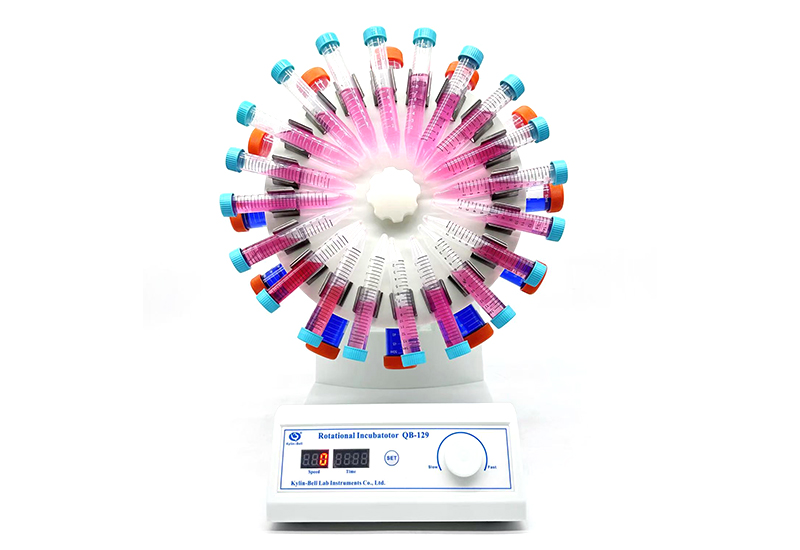

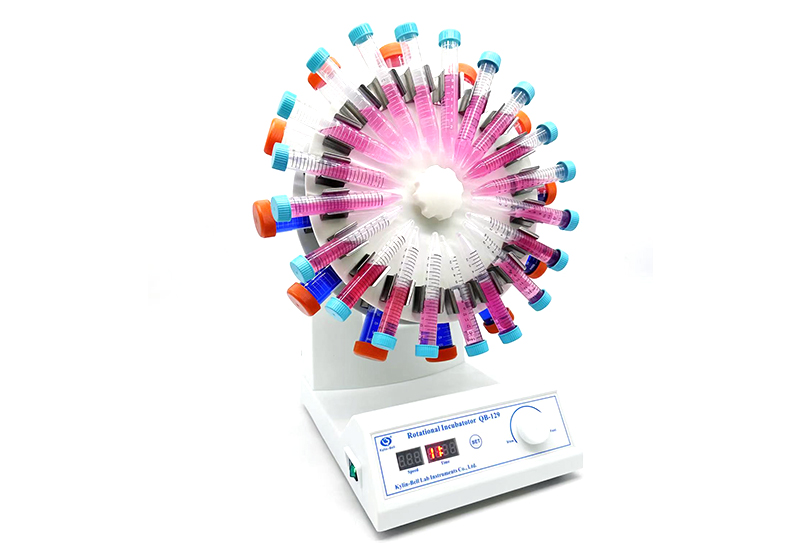

Rotary Shaker Incubator
Application Fields
The rotary cultivator is suitable for experiments requiring high uniformity in sample and reagent mixing. While ensuring thorough mixing, it also prevents damage to cellular tissues during the process. The instrument can simultaneously mix and shake tubes of various capacities, and is also applicable for use in low-temperature or constant temperature chambers.
Product Features
（1）Omnidirectional adjustable mixing angle with inversion and rotational motion.
（2）Simultaneous mixing of different tube racks or two identical racks.
（3）Capable of large-volume mixing and small-sample rotation.
（4）Equipped with splash-proof platform and three optional tube rack accessories[7](@ref).
（5）Compatible with sample tubes of 10~30mm diameter.
（6）Ideal for general mixing of biological samples in suspension[7](@ref).
（7）Operates in temperature ranges from 4℃ to 60℃[3,5](@ref).
（8）Quick-installation clamp system.
（9）Precise time and speed settings enhance experimental accuracy.
Tube Rack Options:
Centrifuge/Culture Tube Rack 10~13mm 48 tubes (1.5ml)
Centrifuge/Culture Tube Rack 15~17mm 20 tubes (15ml)
Centrifuge/Culture Tube Rack 25~30mm 12 tubes (50ml)
Product Drawing
Product parameters
| Operating Temperature: | 4℃~60℃ |
| Mixing Angle: | Adjustable |
| Rotation Speed: | 10~80 rpm[5](@ref) |
| Speed Display: | LCD display |
| Timer Range: | 99.59 hours/Continuous |
| Time Control: | Digital |
| Max Mixing Capacity: | 1200ml |
| Min Mixing Capacity: | 1.5ml |
| Power Supply: | 220V/40W |
| Dimensions: | 270×220×400mm |
Tube Rack Specifications:
| Centrifuge/Culture Tube Rack 10~13mm | 1.5ml*48 tubes |
| Centrifuge/Culture Tube Rack 15~17mm | 15ml*20 tubes |
| Centrifuge/Culture Tube Rack 25~30mm | 50ml*12 tubes |
Standard Configuration: Main unit ×1, Tube racks ×2 (optional models)
(Additional racks available as per specifications)
