Magnetic stirrer
Product Features
Kylin-Bell Large Capacity Magnetic Stirrer adopts internationally advanced design concepts and manufacturing technology, featuring streamlined aesthetics, compact structure, strong versatility and easy operation. This essential laboratory equipment is mainly used for mixing large volumes of low-viscosity liquids or solid-liquid mixtures. Bidirectional rotation ensures homogeneous mixing and experimental efficiency.
Applications:
> Primarily for low-viscosity liquid or solid-liquid mixture agitation
Industry Usage:
> Widely used in laboratories of universities, environmental protection agencies, healthcare institutions, chemical plants, water utilities, and medical facilities
Operation Steps:
> Connect power and turn on switch
> Left knob sets timer ("———————" indicates continuous operation), right knob sets speed
> Press right knob to start/pause
> Press left knob to switch rotation direction
Operating Environment:
> Indoor use only
> Altitude: ≤2000m
> Ambient temperature: +5℃~+40℃
> Relative humidity: ≤80%
> Vibration-free and draft-free environment
> No conductive dust, explosive or corrosive gases
> Maintain 10cm clearance around device
Safety Precautions:
> Prohibited to plug/unplug power connectors with wet hands!
> Never disconnect power while device is energized!
> No maintenance while powered on!
> Do not install on uneven or vibrating surfaces!

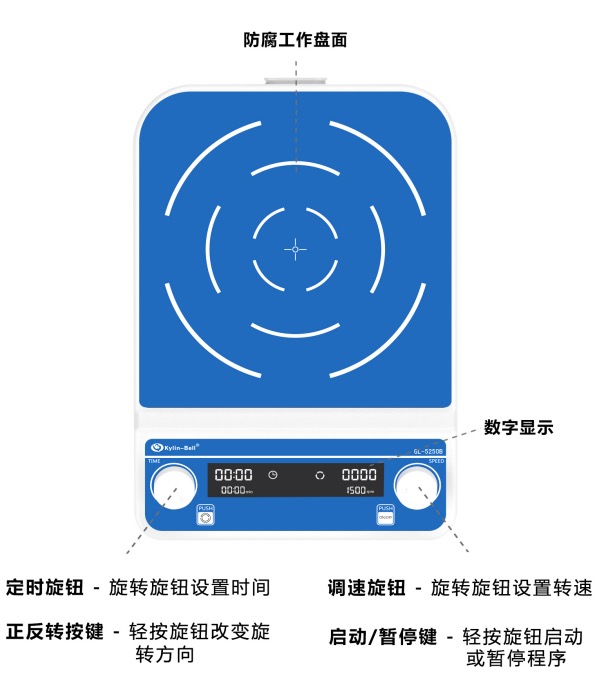

Product Drawing
Product parameters
| Motor Type: | Brushless |
| Max Capacity: | 50L |
| Platform Size: | 14104xg |
| Max Speed: | 330×330mm |
| Speed Range: | 50-1100rpm |
| Speed Accuracy: | ±10rpm/min |
| Noise at Max Speed: | ≤47dB(A) |
| Timer Range: | 23h/59min/59sec |
| Stir Bar Size: | 100mm |
| Power: | 50W |
| Dimensions: | 435×330×85mm |
