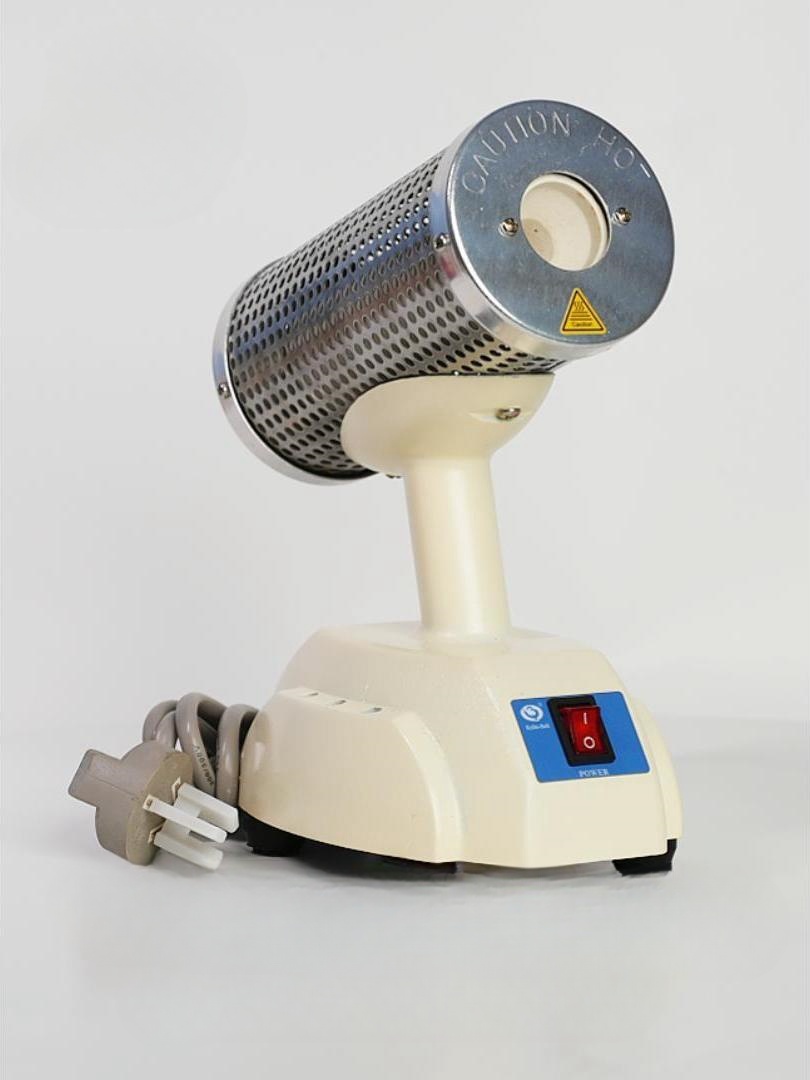

Sterilizer
Application Scope
The Infrared Inoculation Sterilizer employs infrared thermal sterilization technology, featuring flame-free operation, user-friendly design, and effective prevention of cross-contamination. Ideal for microbiological experiments in biosafety cabinets, clean benches, ventilation systems, and mobile laboratories[1,8](@ref).
Product Features
• Safely sterilizes inoculation loops/needles within 5-7 seconds at 800℃+
• Compact stainless steel construction suitable for anaerobic environments[3](@ref)
• Organic matter incineration prevents infectious contamination
• Completely replaces alcohol lamps with enhanced safety[8](@ref)
Product Drawing
Product parameters
| Max. Center Temp.: | 850℃±50℃ |
| Operating Temp.: | 50-40℃ |
| Max. Sterilization Diameter: | 14mm |
| Heating Zone Length: | 150mm |
| Dimensions: | 160×110×230mm |
| Power: | 170W |
| Weight: | 1.15KG |
| Fuse: | 250V 3A 5x20 |
| Heating Time (to max temp): | 20min |
| Input Voltage: | AC220V 50-60HZ |
