Ultra-power spectrophotometer
Product Features
The BE-9000 is a full-wavelength (190-850nm) ultra-micro ultraviolet-visible spectrophotometer that does not require a computer. It can quickly and accurately detect nucleic acid, protein and cell solutions; at the same time, it is equipped with a cuvette mode to detect the concentration of bacteria and other culture medium. The sample volume required for each measurement of nucleic acid test is only 0.5 to 2ul. Directly click the sample on the sample. No accessories such as cuvettes or capillaries are required. After the measurement is completed, you can choose to wipe the sample directly or recycle the sample with a pipette. All the steps are simple and fast, and done in one go. It can be used in various fields such as clinical disease diagnosis, blood transfusion safety, forensic identification, environmental microbial detection, food safety detection, molecular biology research, etc.

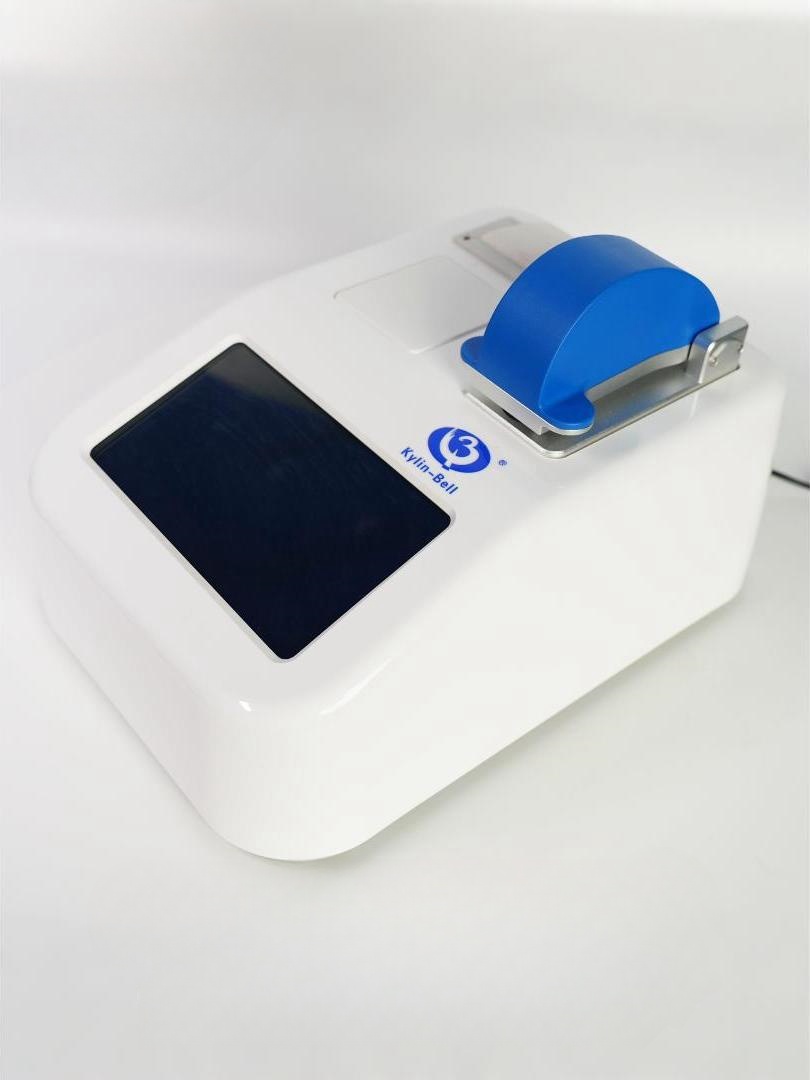

Product Drawing
Product parameters
Model | BE-9000 | Operation Interface | 7-inch touch screen 1024×600High definition display |
Wavelength Range | 190-850nm | Sample Volume | 0.5-2μL |
Optical Travel | 0.2mm、0.05mm（High concentration measurement）1.0mm（Normal concentration measurement） | Nucleic Acid Detection Range | 2-15000ng/μl（dsDNA） |
Light Source | Xenon flash light | Detector | HAMAMATSU UV-enhanced CMOS Linear array sensor |
Absorbance Accuracy | 0.003Abs（0.2mm Optical travel） | Absorbance Accuracy | ±1%（7.332Abs at 260nm) |
Absorption Range(Equivalent to 10mm) | 0.04 - 300A | Test Time | <6S |
OD600 | Absorbance range：0~6.000 Abs | Power Adapter | DC 24V |
| Absorbance stability：[0,3）≤0.5%, [3,4）≤2% | Power | 25W |
| Absorbance repeatability：0,3）≤0.5%, [3,4）≤2% | Power Consumption During Standby | 5W |
Operating System | Android | Size | 200mm*260mm*165mm |
Weight | 5KG |
|
|
